Noise-reducing large plastic recycling

SG Sound-Insulated Plastic Granulator

The SG Silent Crusher is a sound-insulated plastic granulator for centralized recycling of large plastic products and waste. Its enclosed body and sound-absorbing lining help limit noise transmission from granulation.

See the SG Operating Demonstration See How Noise Is Reduced Compare SG models Discuss Your Application →
SG600H Silent Crusher machine.
SG600H Silent Crusher

SG Silent Crusher selling points

Noise-Reducing Body

  • Insulated body
  • Sound-absorbing cotton
  • Noise reduction

Piece or V Blades

  • Piece knives
  • V-blades
  • Resilient or bouncy material

High-Strength Cutters

  • High-strength
  • Wear-resistant
  • Cutters

Safety Protection

  • Motor overload
  • Reverse-phase
  • Multiple safety protections

SG Granulation Demonstration

SG Silent Crusher operating during a large-plastic size-reduction demonstration.

Noise-reducing construction

Inside the SG Noise-Reducing Enclosure

The opened enclosure shows the profiled sound-absorbing lining fitted inside both lower access doors, with the discharge area visible behind them.

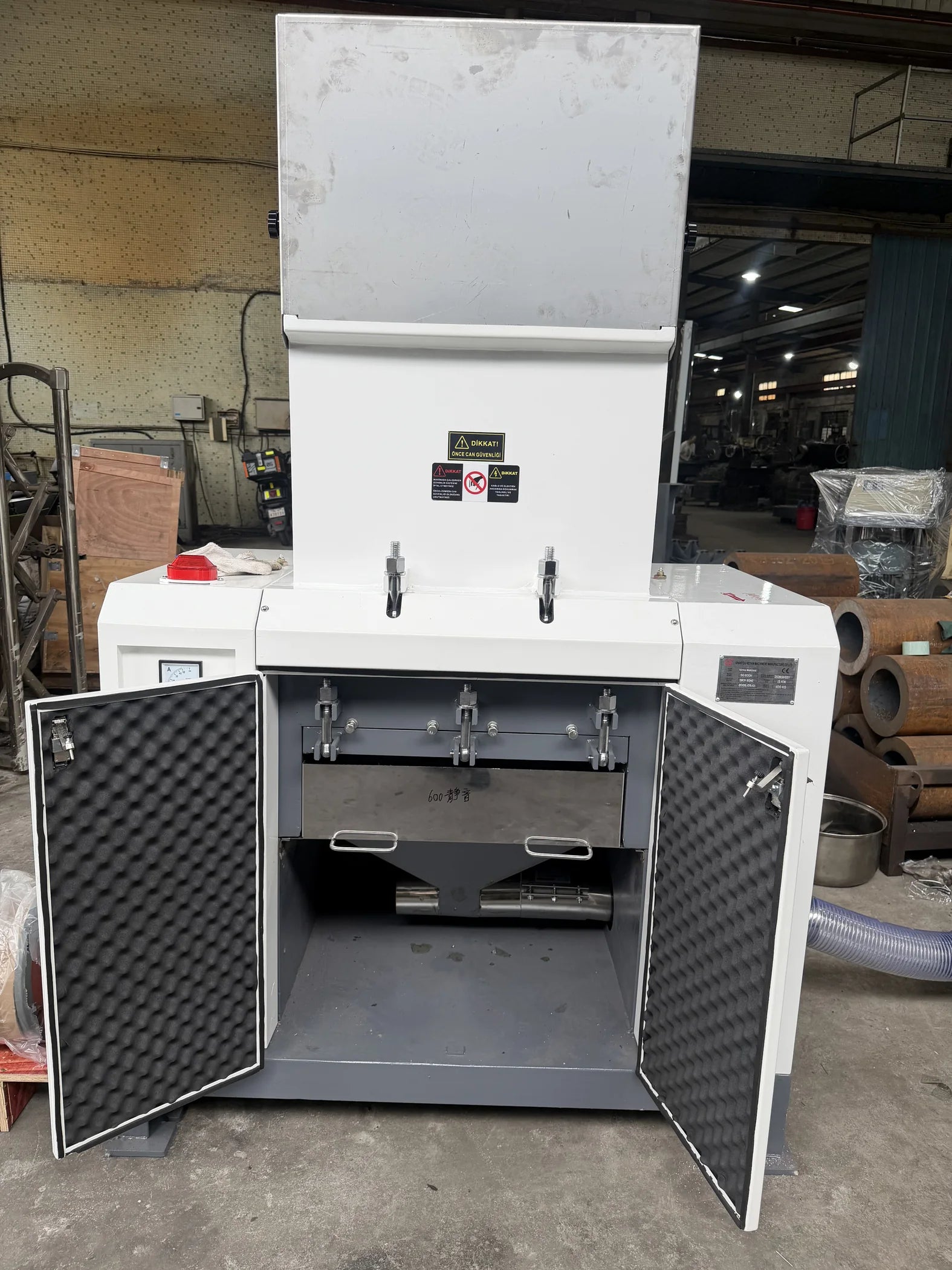

SG Silent Crusher with both lower enclosure doors open, showing the internal sound-absorbing lining and discharge area.
Open SG granulator enclosure — sound-absorbing lining inside both lower access doors; discharge area visible.
Close-up of the profiled sound-absorbing lining used inside the SG Silent Crusher enclosure.
Close-up — profiled sound-absorbing lining inside the SG granulator enclosure.
01

Insulated body

SG uses an insulated body to help limit noise transmission from the crushing process.

02

Sound-absorbing lining

Profiled sound-absorbing lining inside the enclosure further reduces the transmission of crushing noise.

Sound during operation depends on the material, feeding conditions, installation, and surrounding environment. Select the machine and installation around the site's actual noise-control needs.

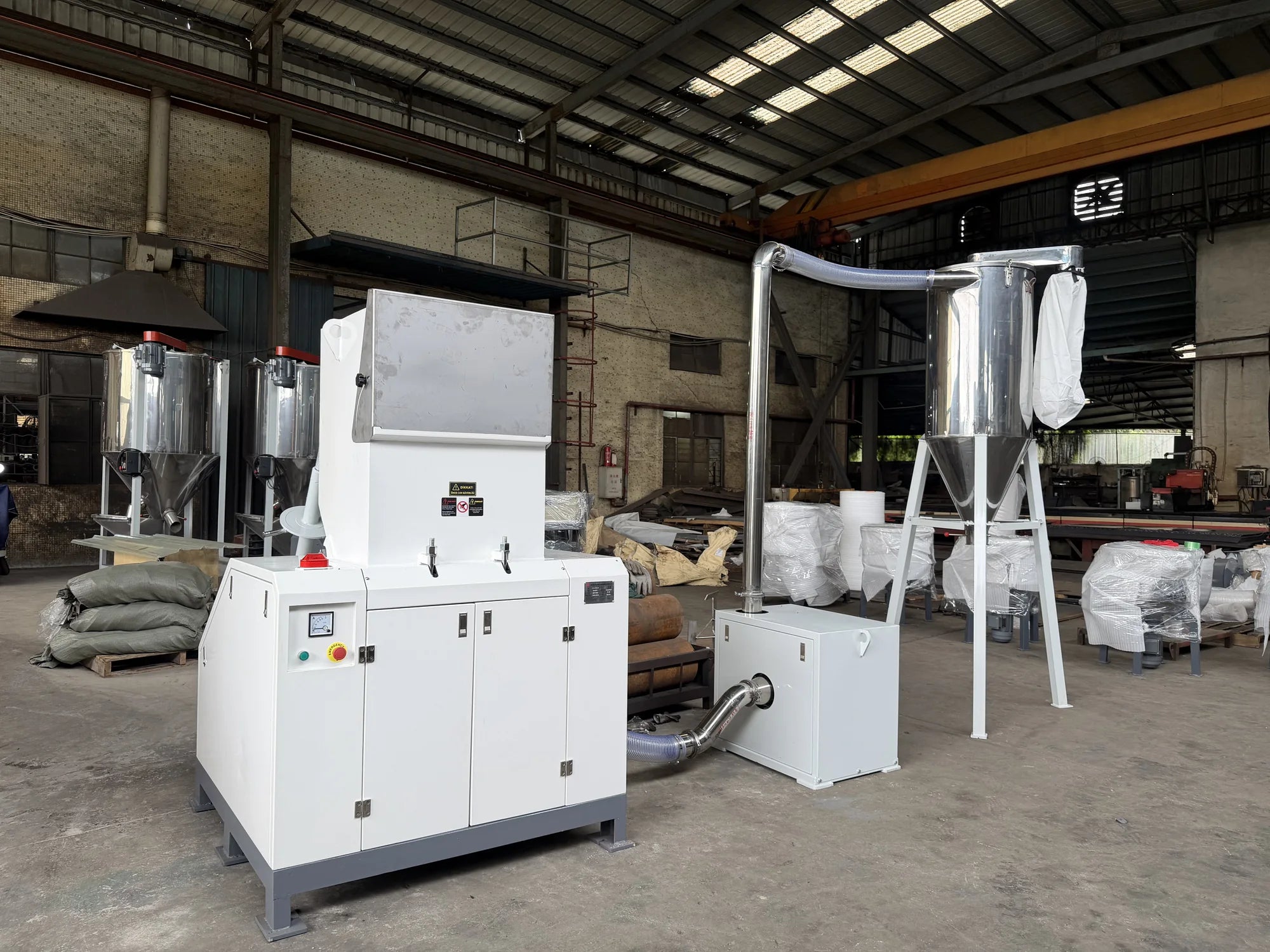

SG Silent Crusher connected to downstream material-transfer and collection equipment in the factory.
SG Silent Crusher with a connected material-transfer and collection configuration.

Connected workflow

Material Transfer and Collection Configuration

SG Silent Crusher can be connected to downstream material-transfer and collection equipment for a continuous recycling workflow.

Material-transfer and collection equipment is selected and configured separately for each application.

Explore Material Loading and Transfer Systems →

Large Plastic Waste Applications

SG Silent Crusher supports centralized size reduction of large plastic chairs, crates or baskets, storage boxes, automotive bumpers, and similar bulky objects.

Assess the complete object dimensions and normal feeding orientation against the selected SG opening. Suitable material can be fed in its original form when the object and feeding arrangement fit, reducing manual pre-cutting.

Black plastic chair shown as an SG granulator waste example.
Plastic chairs
Damaged plastic crate shown as an SG granulator waste example.
Plastic crates or baskets
Automotive plastic bumper shown for waste recognition.
Bumper waste example

Specifications

Model Max. grinding capacity (kg/h) Motor (kW) Stationary blades Rotary blade configuration Dimensions (mm) Weight (kg)
SG300H3005.529 piece knives1100 x 800 x 1500450
SG400H4507.5212 piece knives1190 x 910 x 1600600
SG500H60011215 piece knives1450 x 1060 x 1700850
SG600H80015418 piece knives or 6 V-blades1600 x 1170 x 18801080
SG800H100022424 piece knives or 6 V-blades1790 x 1500 x 24802000
SG6081H130037-4546 V-blades1950 x 1628 x 28802450
SG60101H150045-5546 V-blades1960 x 1830 x 28802800

Capacity values are brochure reference maximums.

Choose the Blade and Configuration

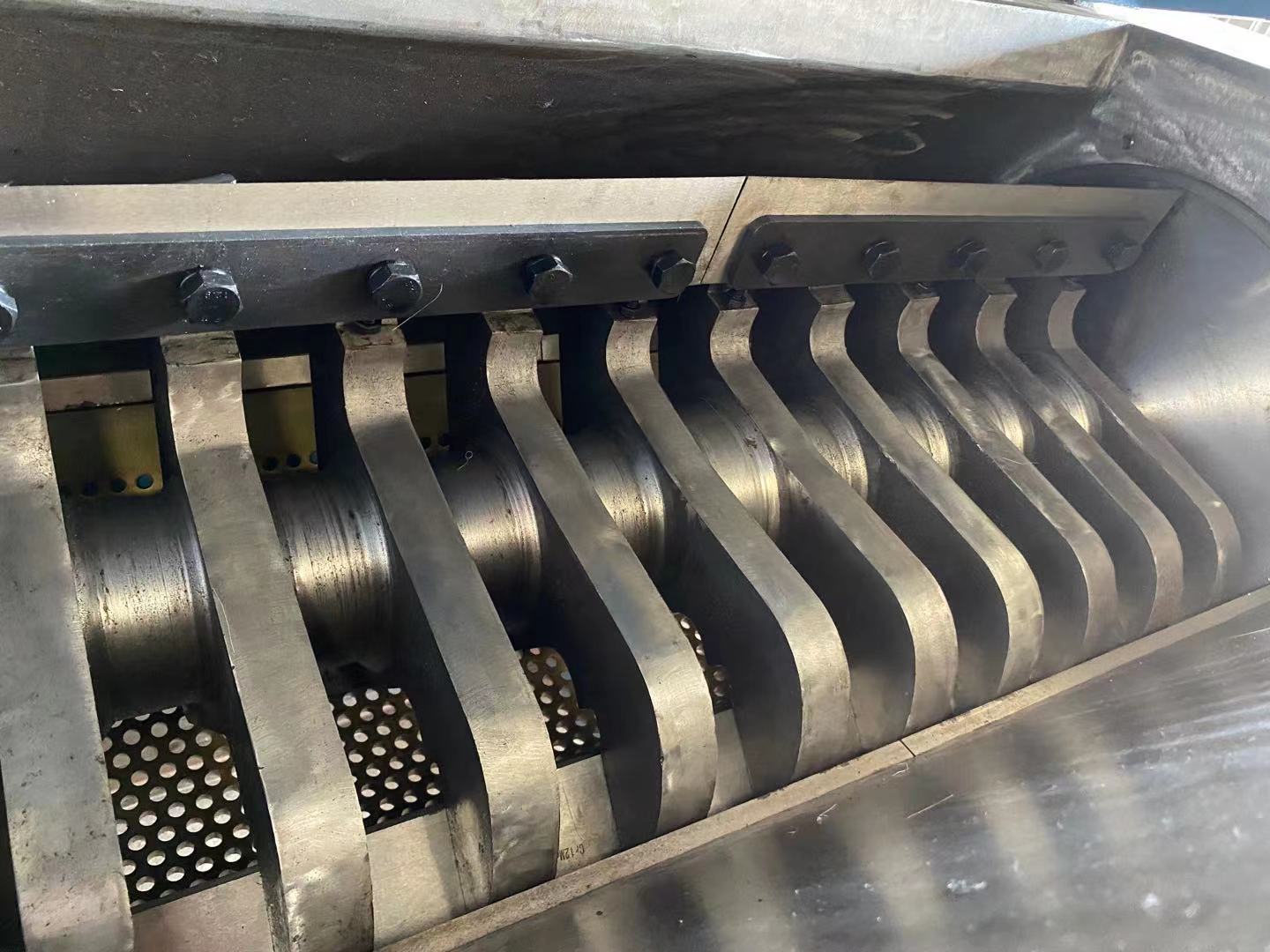

V-blade arrangement inside an SG Silent Crusher cutting chamber.

V-Blades

Preferred for resilient or bouncy plastic waste.

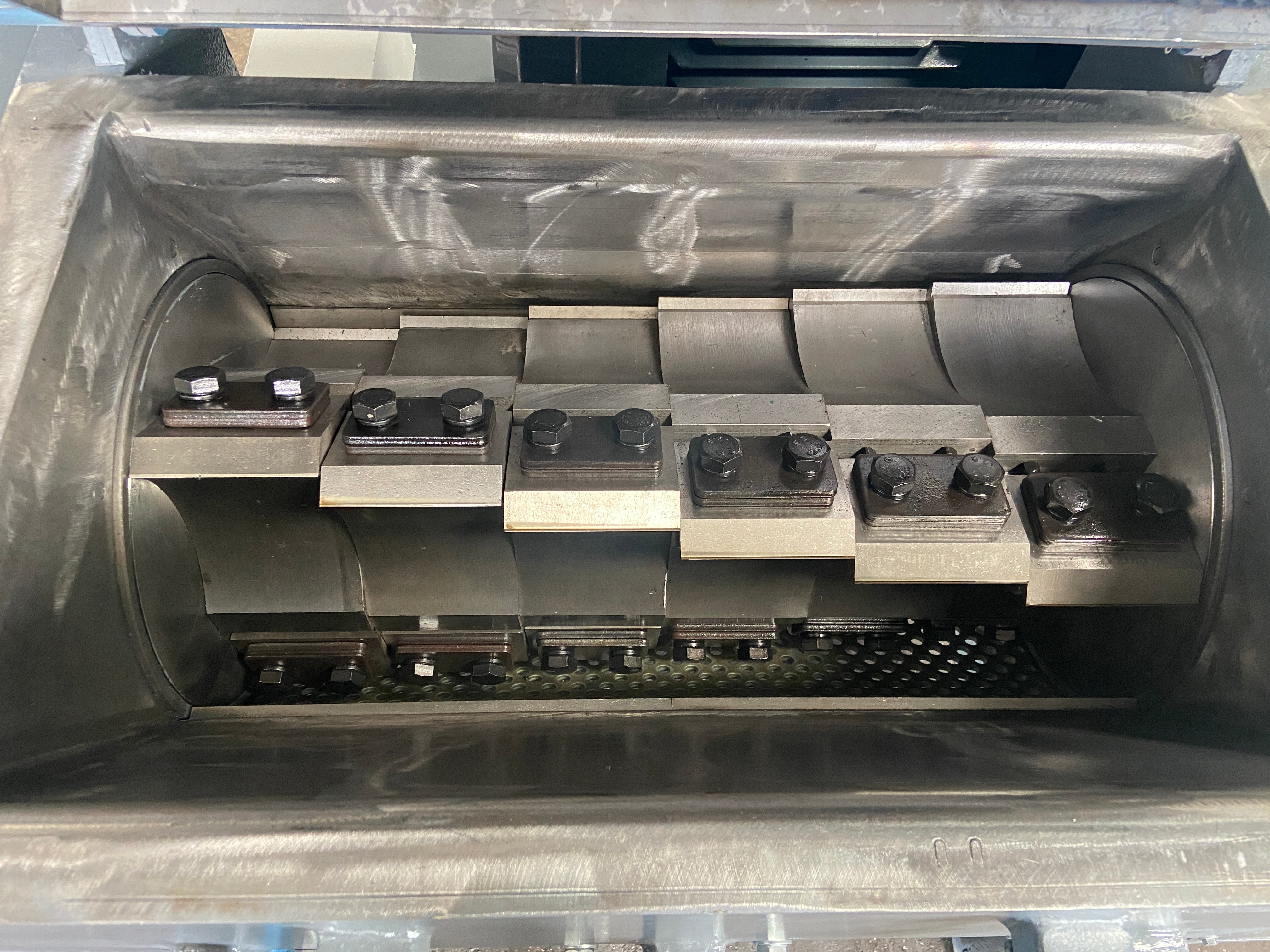

Piece-knife arrangement inside an HPC600 plastic granulator cutting chamber.

Piece Knives

An alternative knife configuration available on selected SG models.

Piece-knife arrangement example.
