Mixing and drying in the same batch

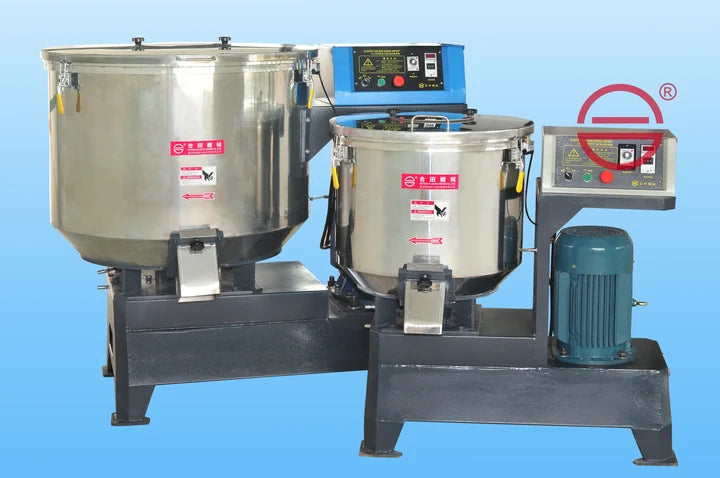

HSD & HSD1 High-Speed Plastic Mixer Dryers
Combine high-speed mixing and drying for opaque plastic materials that need coloring. HSD generates heat through mixing friction. HSD1 adds electrically heated thermal oil to help the material reach its target temperature sooner.
Discuss your application →
Hetian factory demonstration
Watch HSD mixing in the factory
The video shows material moving during HSD mixing. High-speed mixing produces friction heat, allowing mixing and heating to take place together.
Typical mixing inputs include virgin material, regrind, powder and masterbatch. The material and recipe determine whether a particular batch suits this process.
Faster heat-up can shorten the overall cycle
Heating the material throughout the batch takes time. Reaching the required temperature sooner can reduce the overall time from loading to discharge, while the necessary holding time at that temperature remains unchanged.
Heat-up
The material throughout the batch needs to reach the target temperature. HSD1 adds thermal-oil heating to help this part of the process.
Holding at temperature
The material still needs its required drying or holding time once it reaches the target temperature. Faster heat-up does not remove that requirement.
Overall drying cycle
Reducing the heat-up portion can shorten the full loading-to-discharge cycle. Actual timing depends on the material and operating conditions.
Moisture leaves with exhausted hot air. Reaching a temperature and achieving the required drying result are separate parts of selecting the process.
HSD or HSD1: compare the heating method
HSD1's main benefit is faster heat-up. Electricity heats thermal oil, which transfers heat to the material alongside friction heating. This can reduce black specks somewhat by reducing the heat that must come from friction, but it does not eliminate the concern.
| Selection point | HSD | HSD1 |
|---|---|---|
| Heat input | Friction generated during high-speed mixing | Friction plus electricity → thermal oil → material |
| Heat-up | Heating through the mixing process | Additional thermal-oil heating helps reach the target sooner |
| Transparent PET | Generally not recommended: black-speck concern | Generally not recommended: black-speck concern remains |
Compare material weight and material volume separately in the HSD and HSD1 tables. These are batch values, not an hourly drying rate. Discuss the material, recipe and heating requirement before selecting a model.
Specifications
HSD High-Speed Drying / Mixing 2-Purpose Machine
| Model | Total barrel volume (L) | Material weight (kg) | Material volume (L) | Motor (kW) | Rotary speed (r/min) | Appearance size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HSD50P | 125 | 50 | 80 | 7.5 | 550 | 1140 x 800 x 1110 | 230 |
| HSD100P | 250 | 100 | 160 | 15 | 550 | 1340 x 940 x 1230 | 370 |
| HSD150P | 375 | 150 | 240 | 22 | 550 | 1530 x 1050 x 1280 | 480 |
| HSD200P | 500 | 200 | 360 | 30-37 | 500 | 1690 x 1110 x 1380 | 650 |
| HSD300P | 750 | 300 | 500 | 37-45 | 500 | 1820 x 1220 x 1430 | 830 |
HSD1 High-Speed Oil-Heating and Drying / Mixing Machine
| Model | Total barrel volume (L) | Material weight (kg) | Material volume (L) | Motor (kW) | Main-axis speed (r/min) | Heating method | Appearance size (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| HSD1 50Y | 125 | 50 | 80 | 7.5-11 | 500 | Friction and electric heating | 1150 x 850 x 1020 | 280 |
| HSD1 100Y | 250 | 100 | 160 | 15-22 | 500 | Friction and electric heating | 1250 x 1000 x 1110 | 460 |
| HSD1 150Y | 375 | 150 | 240 | 22-30 | 500 | Friction and electric heating | 1500 x 1150 x 1280 | 620 |
| HSD1 200Y | 500 | 200 | 360 | 30-37 | 500 | Friction and electric heating | 1750 x 1400 x 1380 | 780 |
| HSD1 300Y | 750 | 300 | 500 | 37-45 | 500 | Friction and electric heating | 1820 x 1400 x 1430 | 930 |
Material weight and material volume are listed separately.
Questions about high-speed mixing and drying
Does HSD1 reduce the required holding time?
No. HSD1 can shorten heat-up, which can shorten the overall loading-to-discharge cycle. The material still needs its required holding or drying time at the target temperature.
Can HSD1 prevent black specks in transparent PET?
No black-speck-free result is promised. Thermal-oil heating reduces reliance on friction heat and can reduce black specks somewhat, but Hetian still generally does not recommend HSD1 for transparent PET.
Can the machine mix powder, regrind and masterbatch?
These are typical input categories considered for HSD mixing and drying, together with virgin material. Suitability depends on the actual material and recipe; send the details you know so Hetian can assess the batch.
