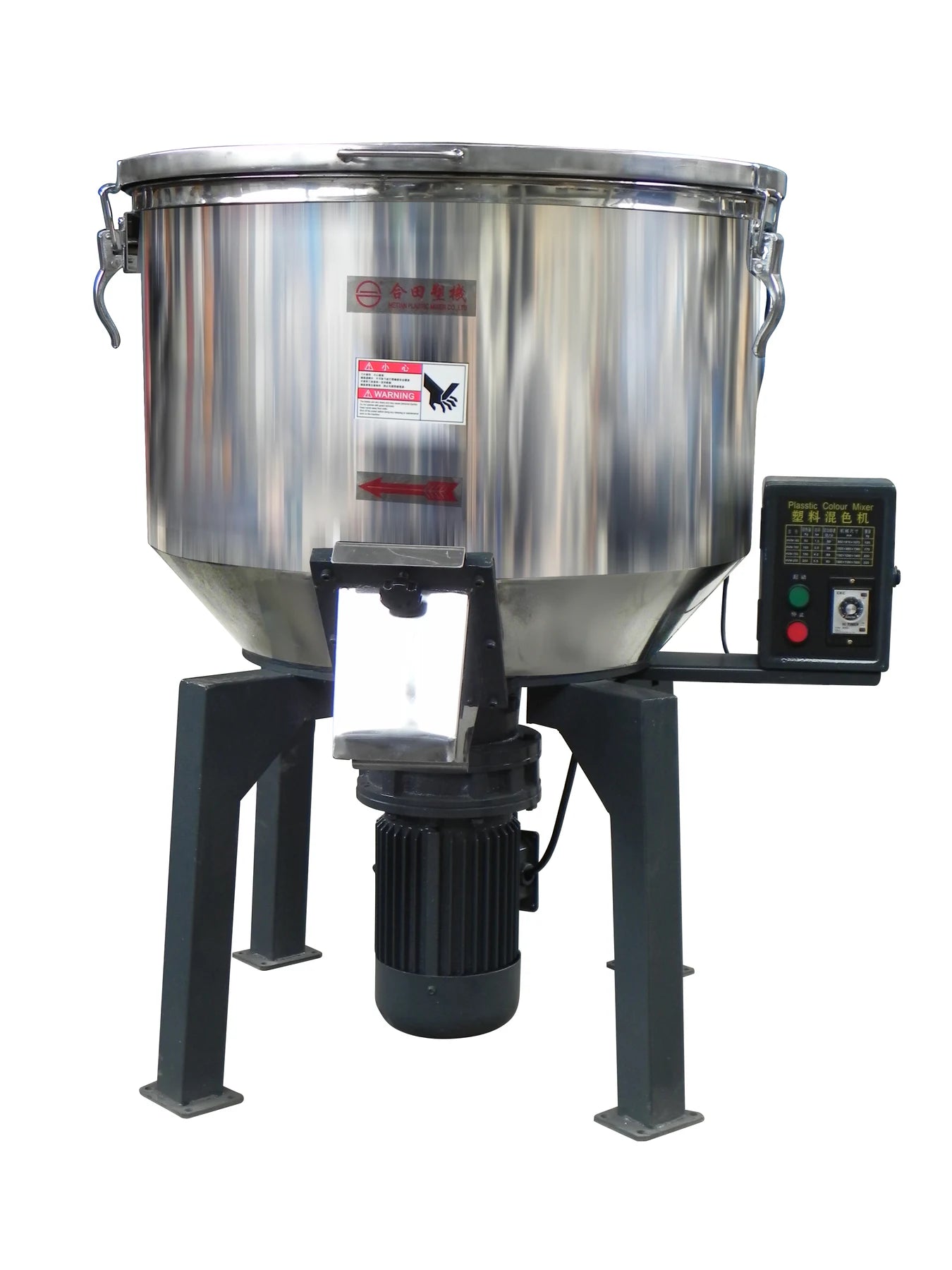

HVM Vertical Materials Mixing Machine
HVM Vertical Materials Mixing Machine supports batch mixing of plastic materials in a vertical barrel. Compare the series options by batch quantity and mixing need.
HVM machine benefits
Easy Cleaning
- Stainless-steel barrel and blades
- Easier cleaning
Enclosed Mixing
- Enclosed mixing structure
- Closed mixing
Direct Drive
- Direct motor drive
- No belt transmission
Timed Mixing
- Adjustable mixing time
- Timed stop
HVM mixing demonstration
Controlled open-lid demonstration: the operator holds the safety switch so the mixer can be shown while open. In normal operation, the lid is closed and no one needs to hold the switch; opening the lid stops the machine for safety.
Wide Range of Mixing Capacities Available
Specifications
| Model | Mixing capacity (kg) | Motor (kW) | Rotary speed (r/min) | Appearance size (mm) | Weight (kg) |
|---|---|---|---|---|---|
| HVM25J | 25 | 0.75 | 60 | 720 x 670 x 900 | 70 |
| HVM50J | 50 | 1.5 | 60 | 850 x 810 x 1070 | 95 |
| HVM100J | 100 | 3 | 60 | 1020 x 980 x 1360 | 145 |
| HVM150J | 150 | 4 | 60 | 1150 x 1050 x 1400 | 210 |
| HVM200J | 200 | 5.5 | 60 | 1300 x 1180 x 1500 | 260 |
| HVM300J | 300 | 10 | 60 | 1450 x 1350 x 1650 | 300 |
Mixing capacity is per batch.
